T-Deck Plus [CA]

T-Deck Plus [CA]

Upgraded based on T-Deck, mainly added GPS module, and Built-in 2000 mah battery

【Keyboard letter styles are sent randomly】

Specifications

MCU ESP32-S3FN16R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development Arduino, PlatformlO-IDE, Micropython
Flash 16MB
PSRAM 8MB
Battery ADC PIN IO04
Onboard functions  GPS,TF Card,Microphone,Speaker

 2.8 inch ST7789 SPI Interface IPS LCD:

Resolution: 320 x 240 Full viewing angle
 SX1262 LoRa Transceiver
Transmit power +22dBm
Frequency Optional  433/868/915Mhz

--- LILYGO GitHub Support ---



ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.

 🧑‍💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.


An external antenna connector is reserved on the case, you can connect it by opening the small hole in the case.


Pin Diagram

More

What's In The Box

433Mhz

Select Firmware
Select Version
From $21.30

Original: $70.99

-70%
T-Deck Plus [CA]—

$70.99

$21.30

More Images

T-Deck Plus [CA] - Image 2

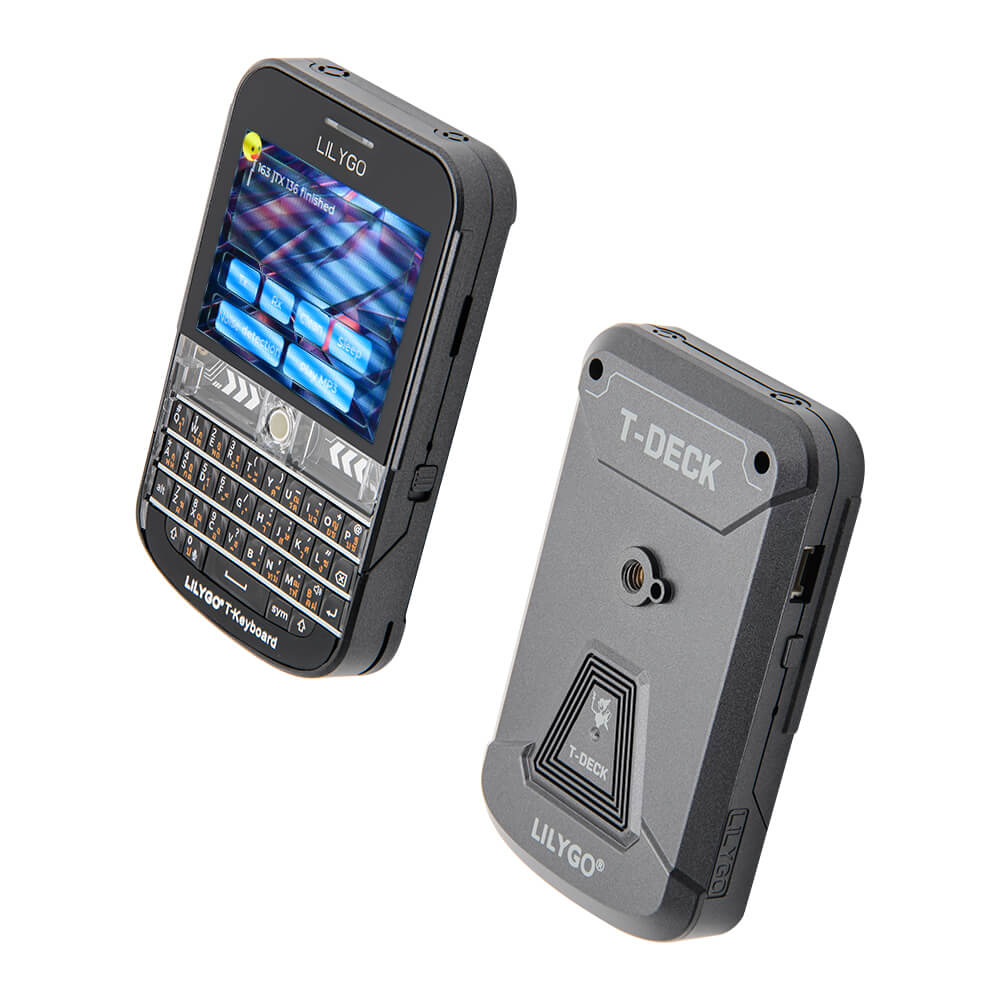

T-Deck Plus [CA] - Image 3

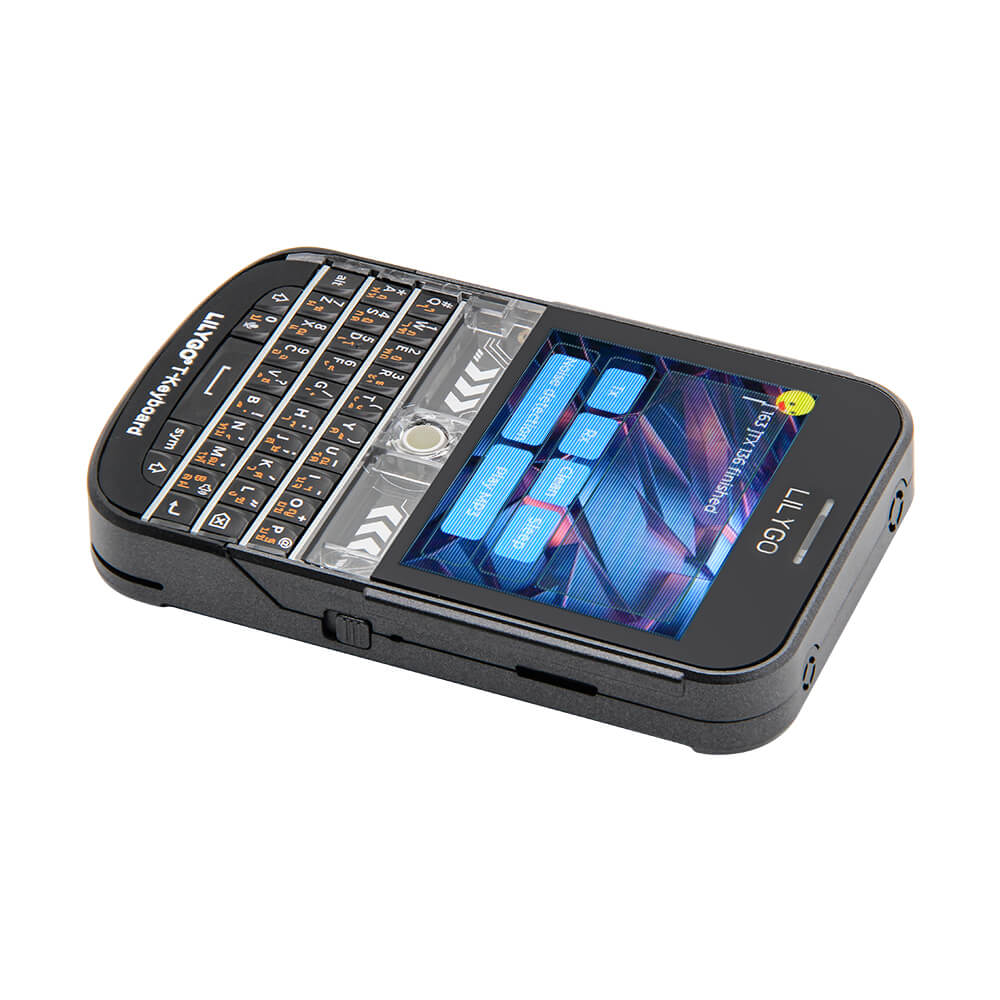

T-Deck Plus [CA] - Image 4

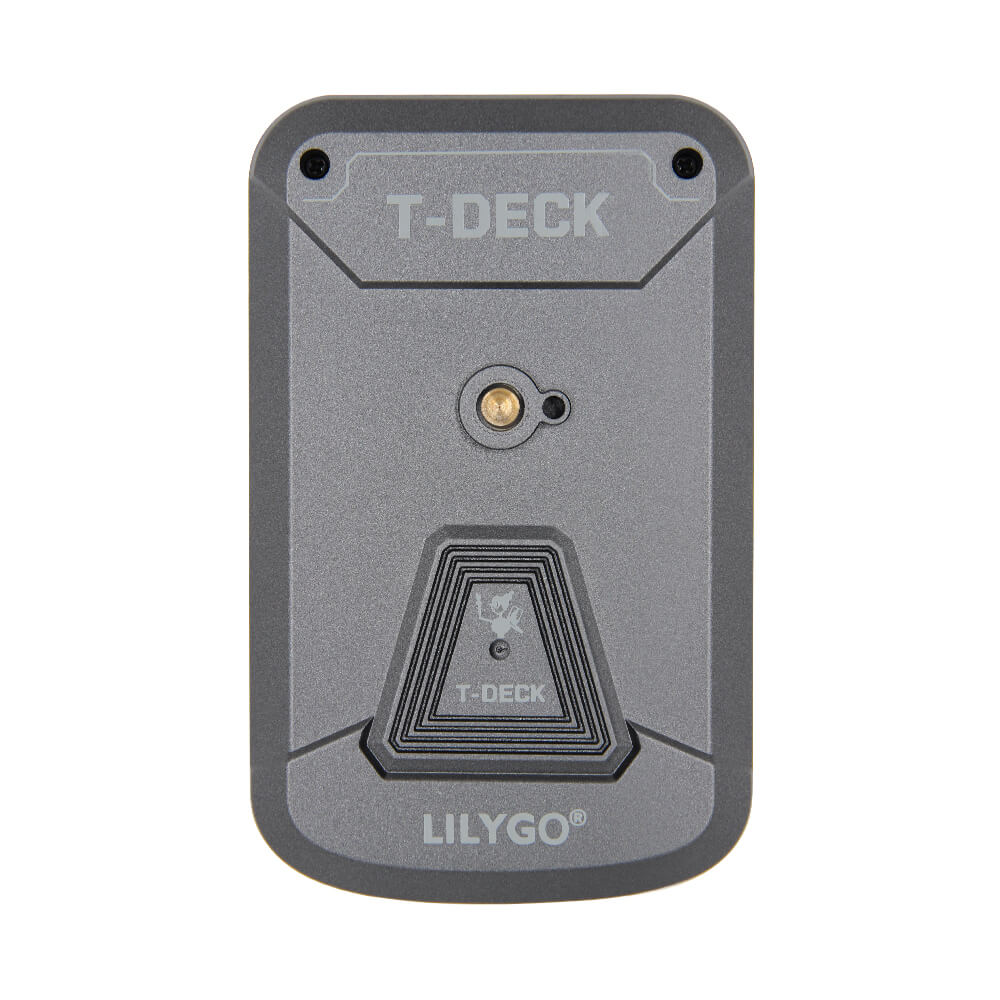

T-Deck Plus [CA] - Image 5

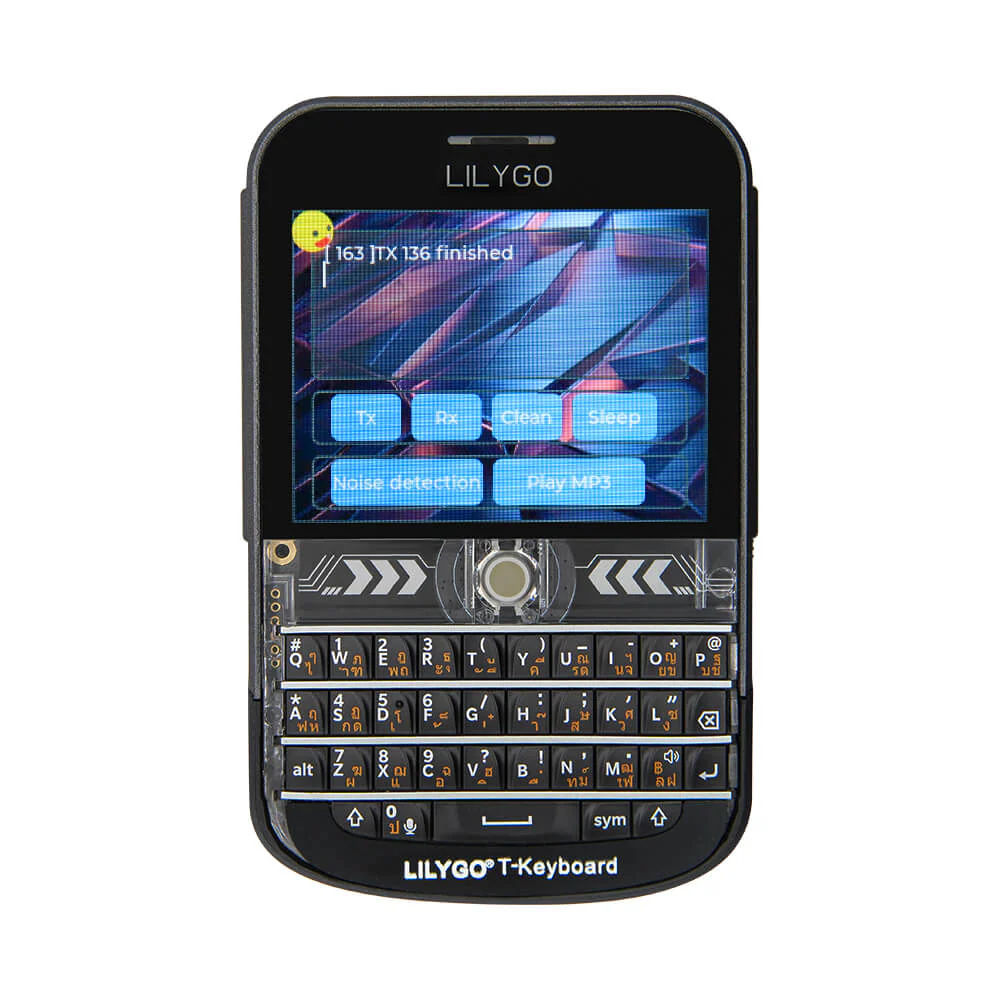

T-Deck Plus [CA] - Image 6

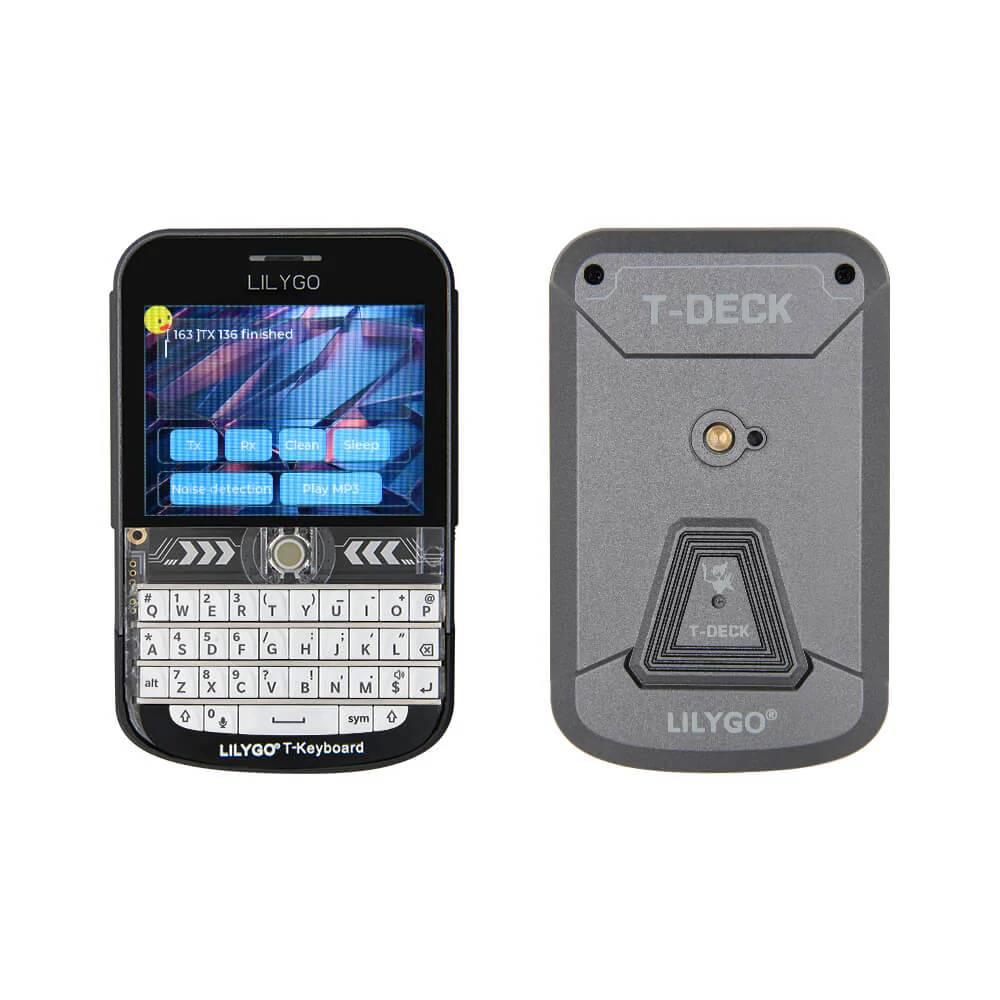

T-Deck Plus [CA] - Image 7

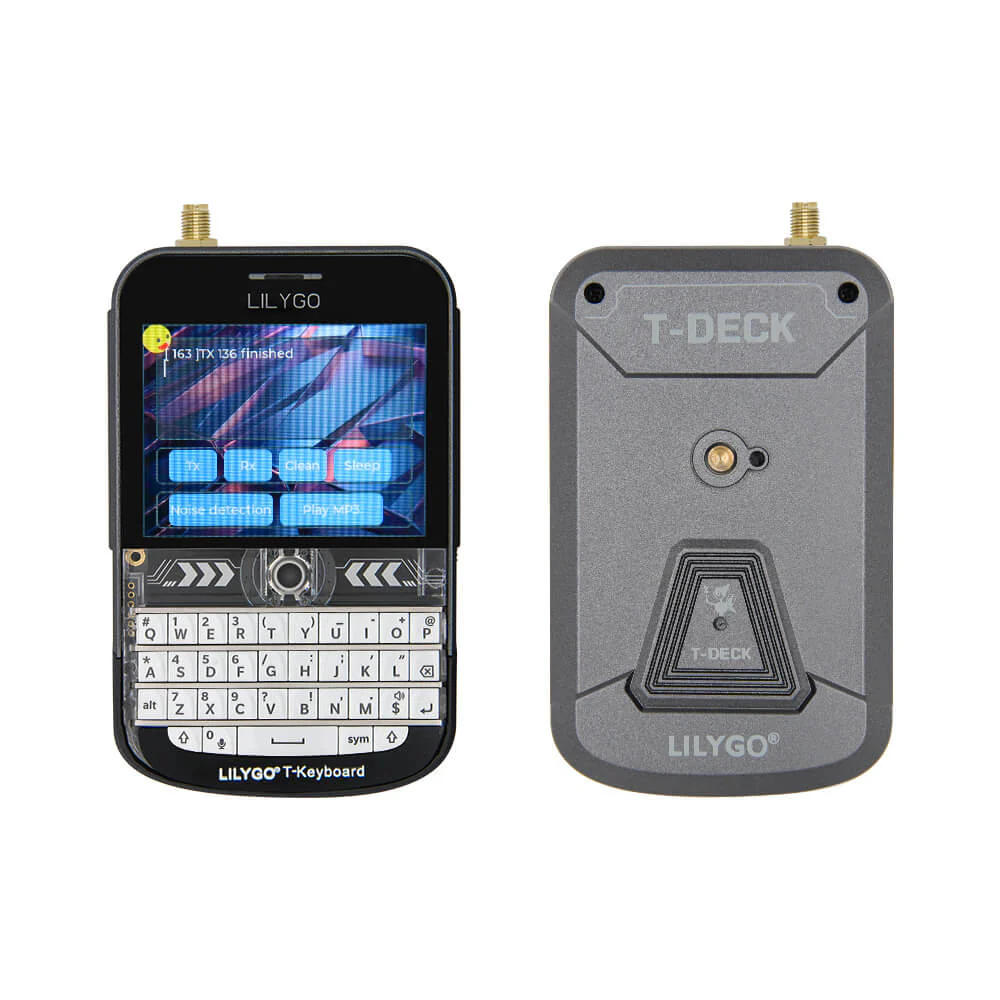

T-Deck Plus [CA] - Image 8
