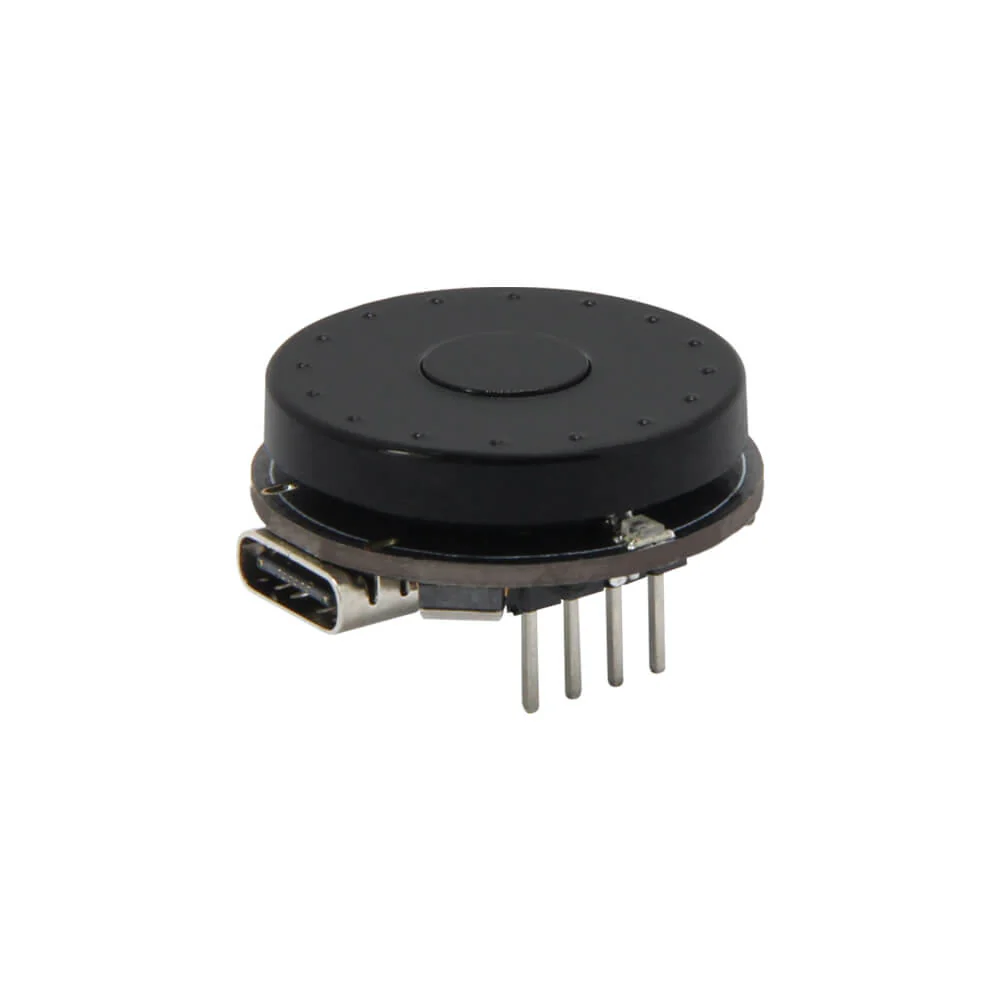

T-Encoder

 LILYGO® TTGO T-Encoder ESP32 Wireless Module RGB LED Ring Encoder T-U2T Downloader WiFi Bluetooth Programming Development Board

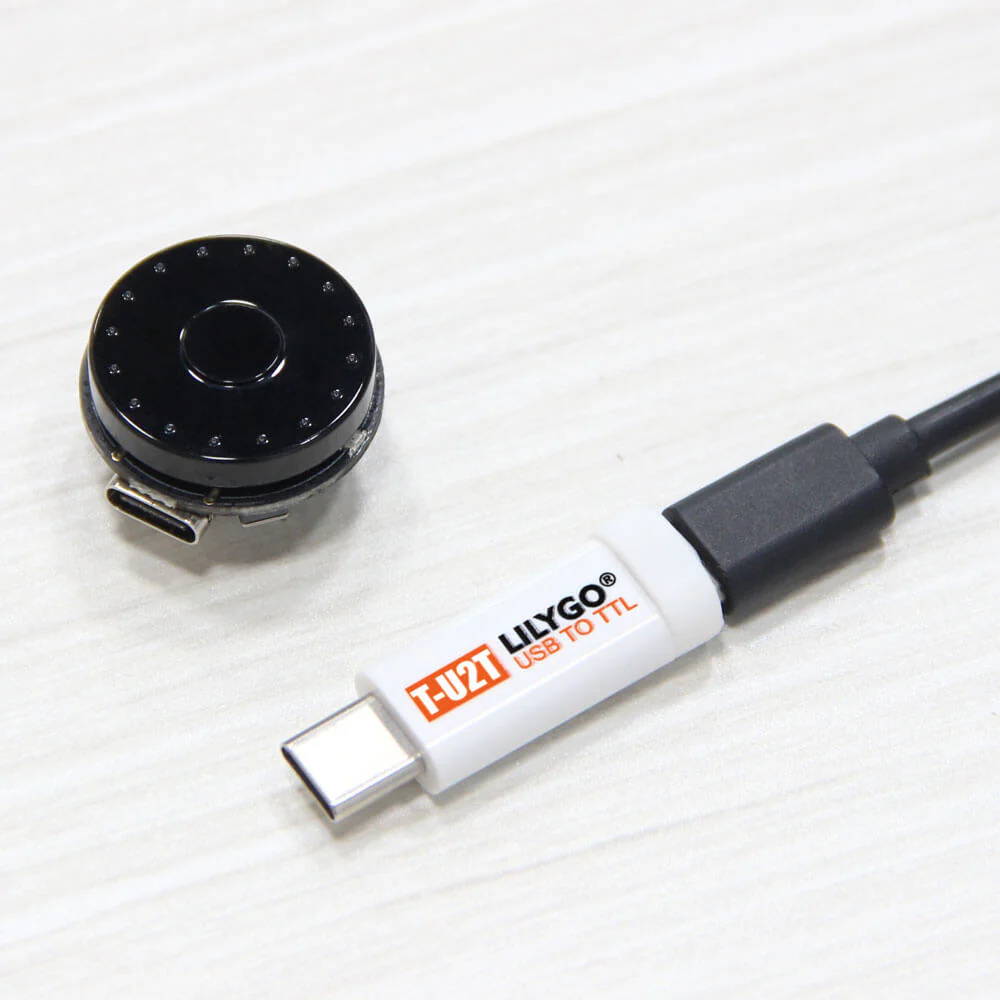

Note : Since the motherboard does not have USB Serial port chip, it needs to be equipped with T-U2T to program.

Specifications

MCU	ESP32-PICO-V3-02
Flash	8Mb
PSRAM	2Mb
Bus Interfaces	UART, SPI, I2C
Pin Header	male/female
Wireless Connectivity	Wi-Fi:802.11 b/g/n/, BLE V4.2
Onboard Buttons	RESET
WS2812 RGB LED	Data IO25



Sample Code For Reference [Github]

If you need technical support please check the link to find more details.

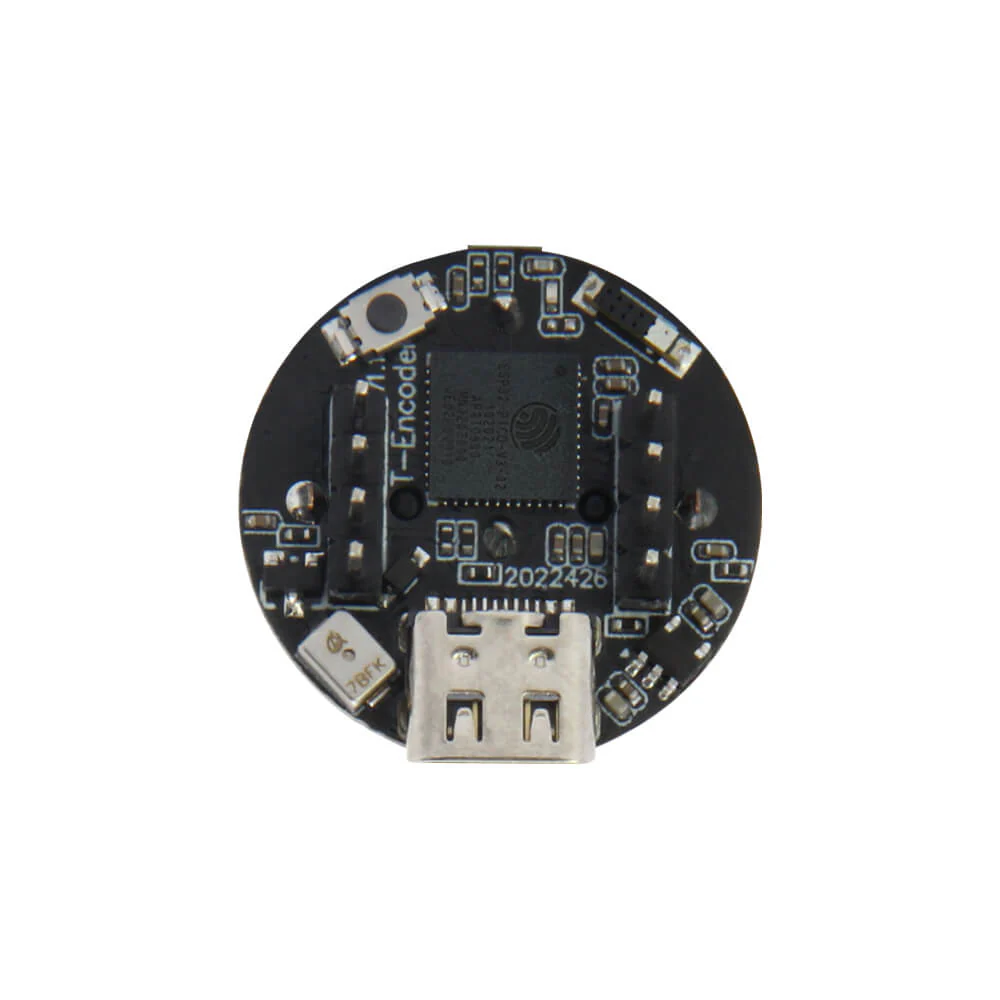

T-Encoder

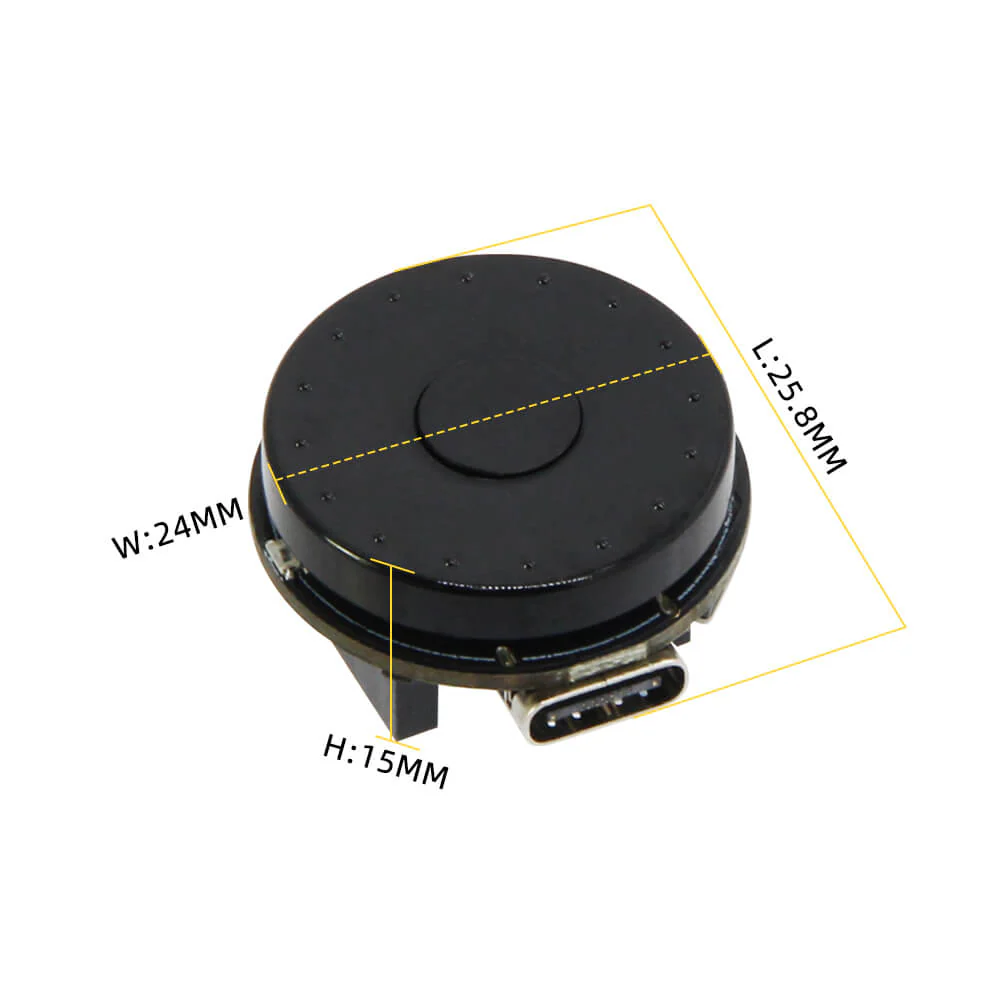

Size

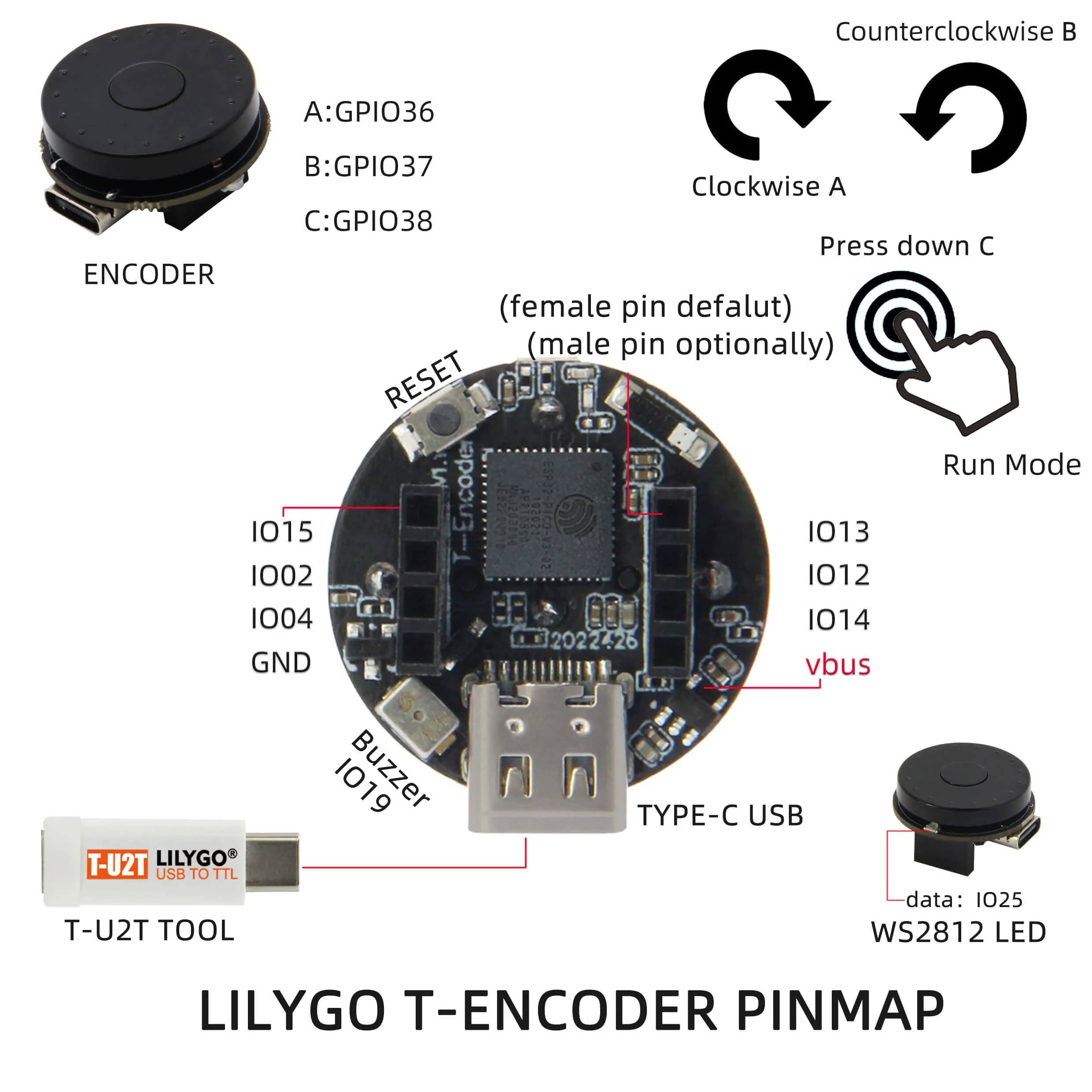

Pin Diagram

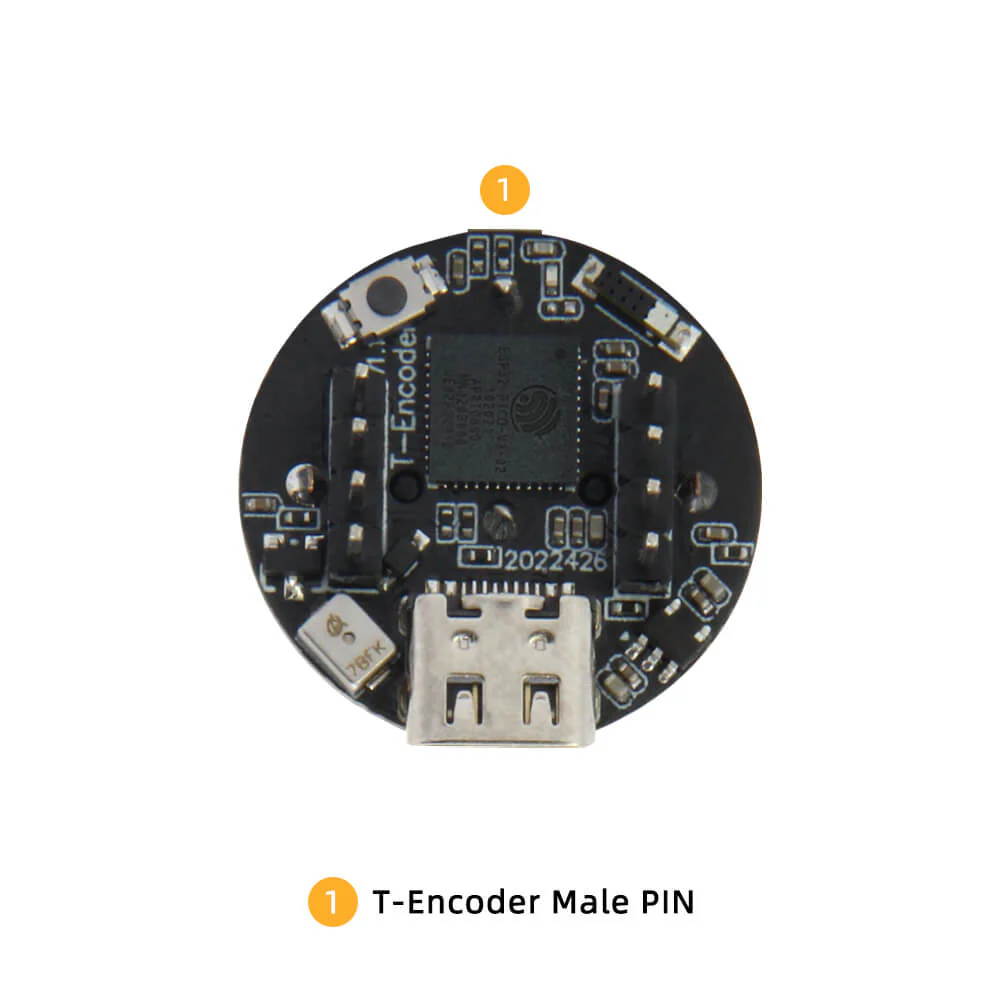

T-Encoder Male Pin

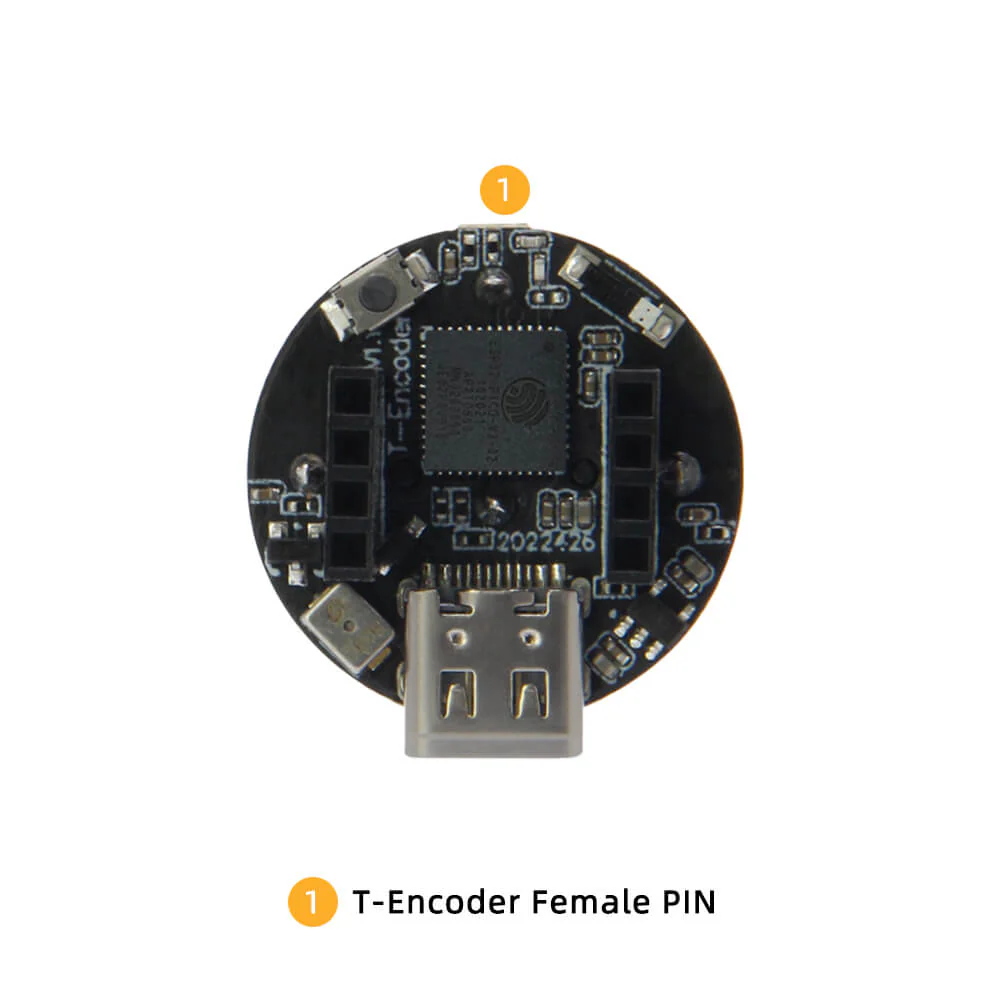

T-Encoder Famale Pin

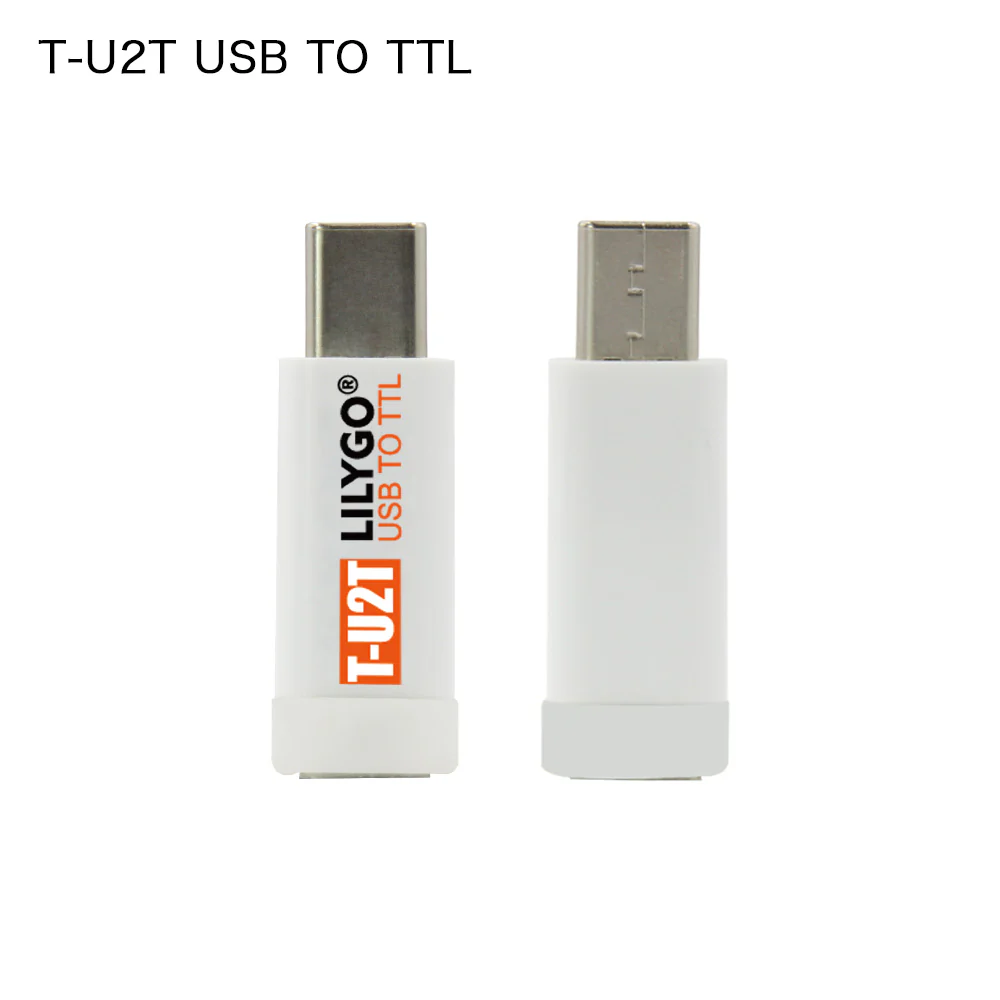

 T-UT2
