T-QT Pro
Specification
| MCU | ESP32-S3FN4R2 Xtensa LX7 microprocessor |
| Wireless Connectivity | Wi-Fi 802.11 b/g/n, BL V5.0+BLE |
| Programming Platform | Arduino-ide, Micropython |
| Flash | 4M |
| PSRAM | 2M |
| Clock frequency | 240Mhz |
| Onboard functions | IO00+IO47 |
| Battery Detection | IO04 |
LCD: GC9107 TFT IPS LCD
| LCD | Resolution: 128*128px |
| Support | 4-Wire SPI interface |
| Display Area | 15.2064(H)*15.2064(V) |
| Display Colors | 262K |
| Brightness | 260 cd/m2 |
Sample Code for Reference [Github]
If you need technical support please check the link to find more details.
T-QT Pro
What's the difference between T-QT Pro
| Version | S3FN8 Basic | S3FN8 Shell Version | S3FN4R2 Basic | S3FN4R2 Welded PIN | S3FN4R2 Shell |
| Chip Model | ESP32-S3FN8 | ESP32-S3FN8 | ESP32-S3FN4R2 | ESP32-S3FN4R2 | ESP32-S3FN4R2 |
| Battery Charge | ✔ | ✔ | ✔ | ✔ | ✔ |
| Battery Discharge | ✔ | ✔ | ✔ | ✔ | ✔ |
| Flash | 8M | 4M | |||
| PSRAM | - | 2M | |||
| LCD Driver | GC9A01 | ||||
| Screen Size | 0.85 Inch LCD | ||||
1. Pin Diagram

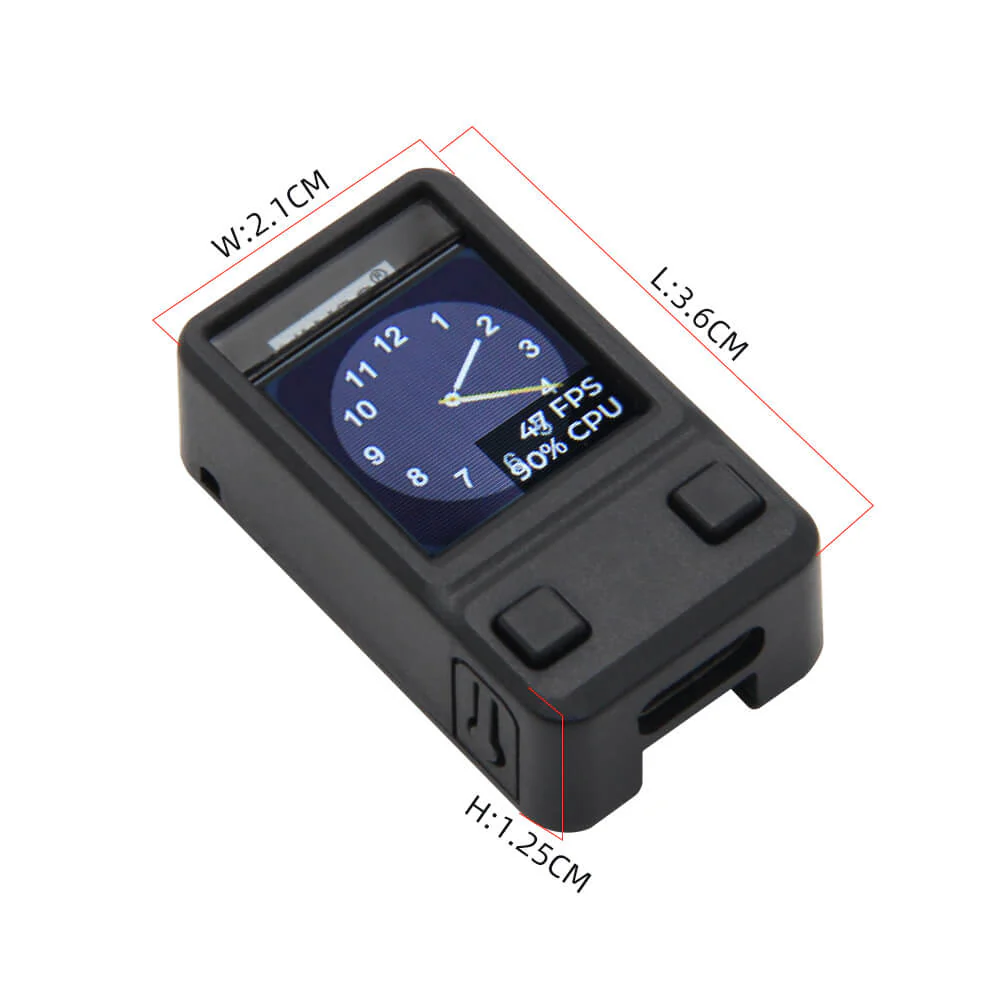

2. Size
3. Appearance Details

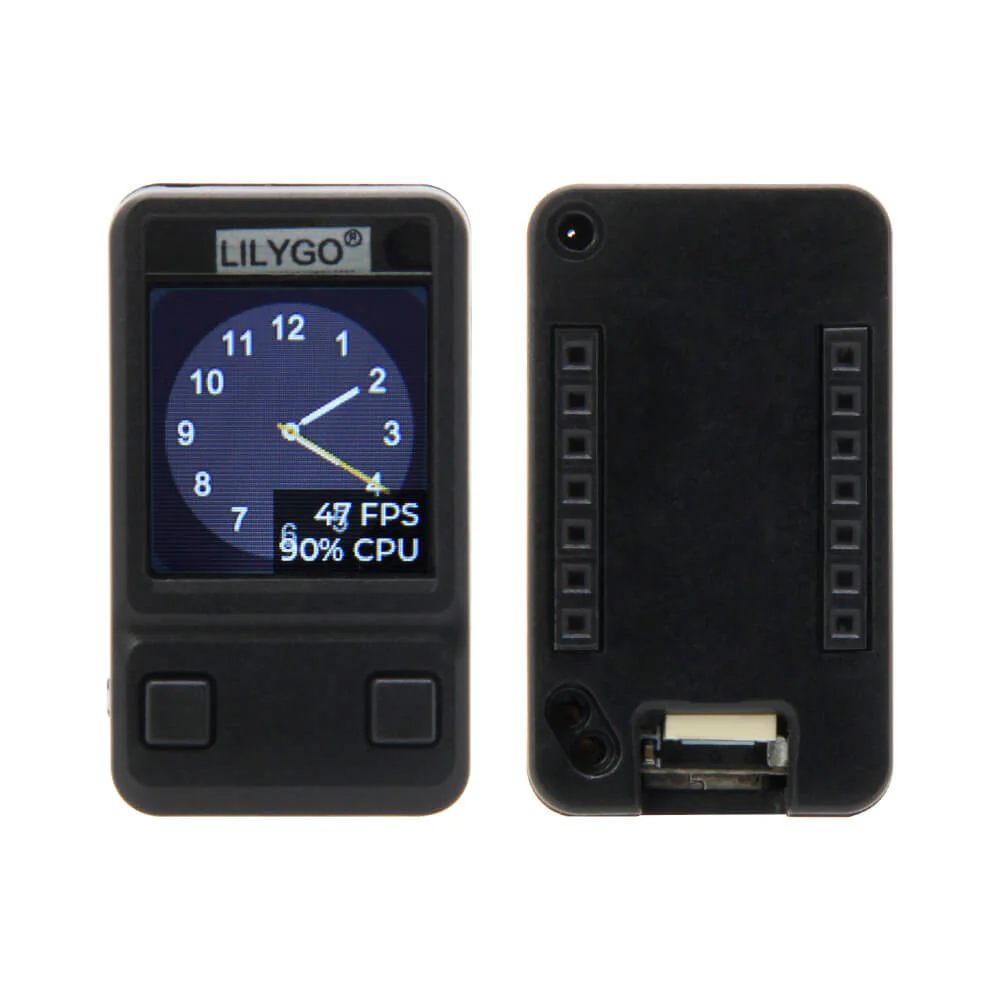

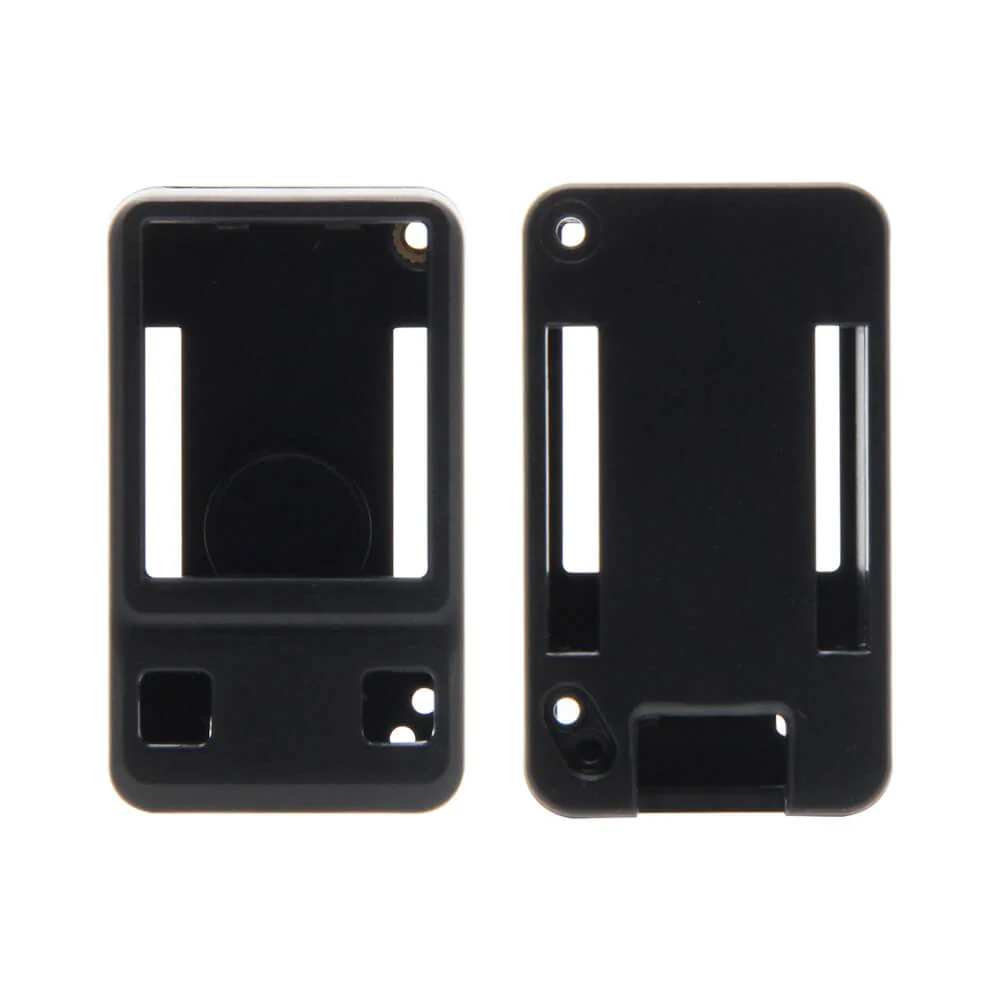

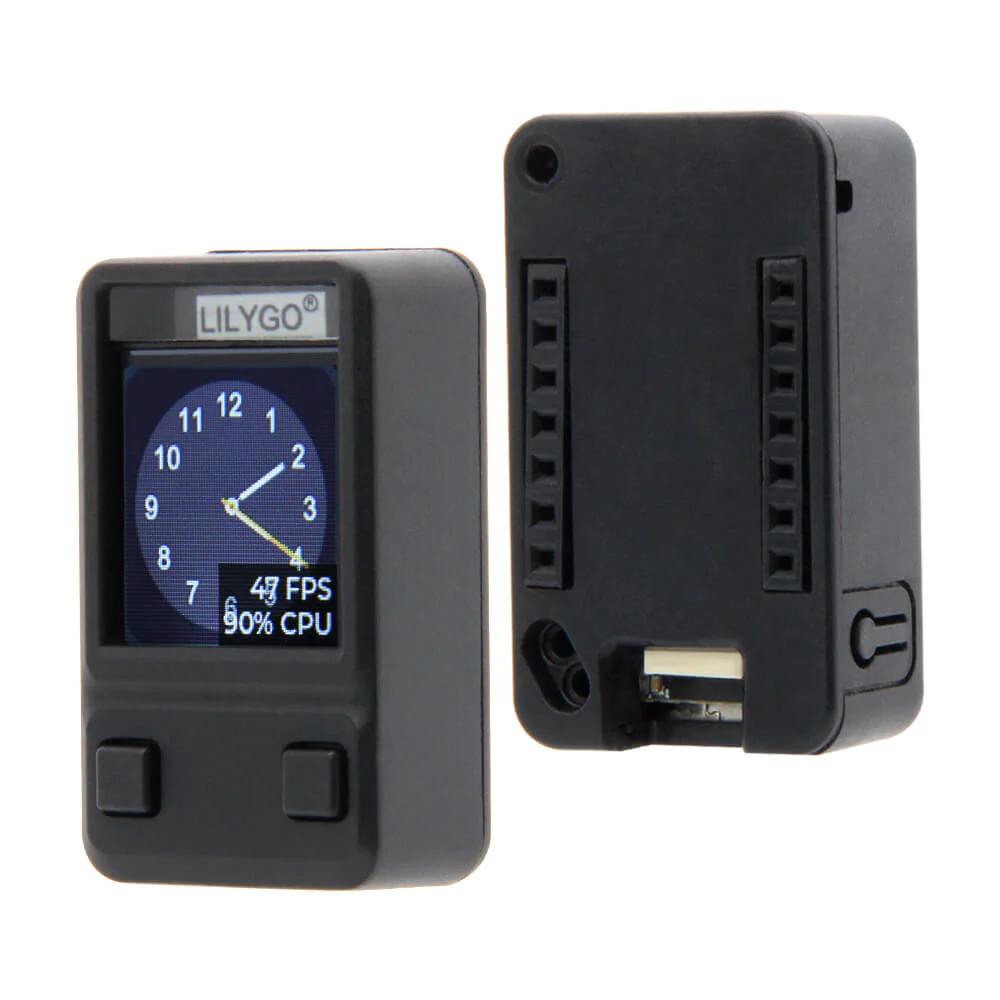

T-QT with Shell
